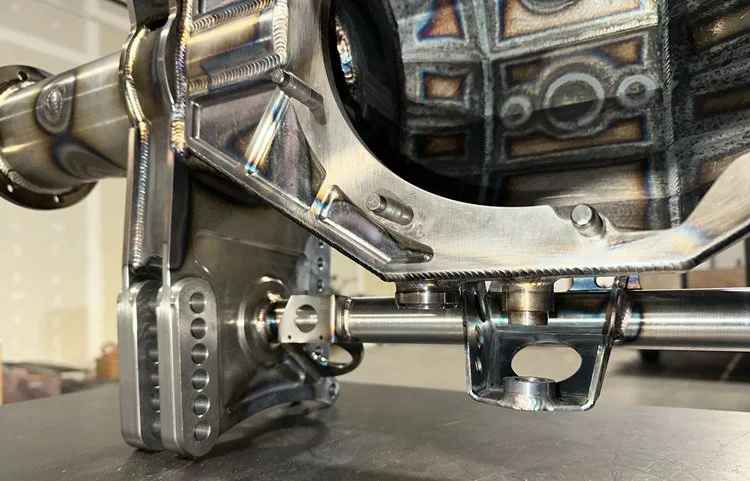

Xtreme Drive Pro Series Floater Housing

Specializing in building the toughest rear end housings has made us the go-to company for rear end housings in just about every field of racing. Our Xtreme Drive Pro Series housings are built to withstand up to 5,000 horsepower. With 3.50” axle tubes integrated into the .375” thick faceplate and billet 4-Link brackets; you can be assured there will be no issues when you put the power to the tires. All components of our housings are made out of 4130 Chromoly.

Note: To get a build sheet for your next housing, give us a call or shoot us an email.

Specs:

  • Ford 9” or 11” Gear Setup

  • .250” Thick Billet 4-Link Brackets

  • 3.50” Axle Tubes

  • Carbon or Steel Brake Applications

  • Full Back Brace

  • Floater Spindle or Flanged Housing End Options

  • 100% 4130 Chromoly

  • Call for Pricing

  • Floater Spindles

  • Full Back Brace

  • .250" Billet 4-Link Brackets

  • Wishbone/Drain Bung

  • 9" and 11" Dual Adaptable Machined Faceplate

  • Custom Widths/Applications

  • Custom Bracket Designs
